uThing::MNL

Motion (PIR), Noise (SPL) & Luminosity

Description:

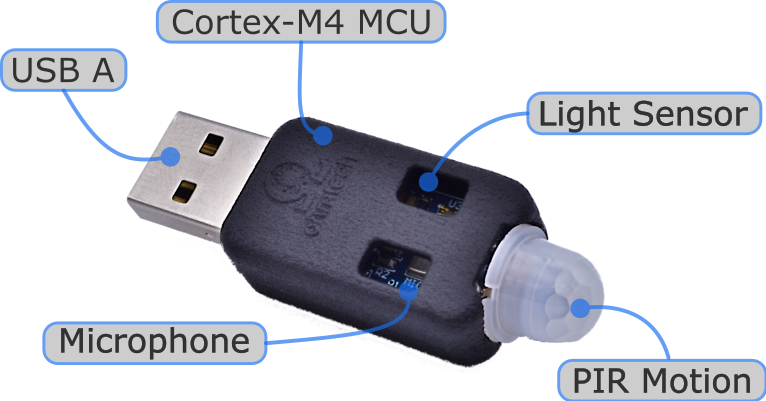

uThing::MNL™ is an easy-to-use USB multi-sensor dongle for detecting presence, measuring ambient noise (SPL) and tracking activity levels in indoor spaces. It integrates a motion (PIR) sensor, a luminosity sensor, and a MEMS microphone for ambient noise analysis.

The aggregated output data generated from these 3 sensors can be used to detect presence of people or track the activity levels on an indoor space for example.

‍

Key Features:

Multi-Sensor Integration: Combines a passive infrared (PIR) motion sensor, a luminosity sensor, and a MEMS microphone for Sound Pressure Level (SPL) measurement.
Onboard Processing: A powerful ARM Cortex-M4 with DSP instructions processes raw sensor data into meaningful values.
Simple Connectivity: Plugs into any USB host (Linux, macOS, Windows, Android) and works as a standard Virtual COM Port (VCP) with no drivers needed.
Flexible Output: Provides data in JSON (default), CSV, or a human-readable format for easy integration.
Customizable Optics: Includes two interchangeable Fresnel lenses to optimize the motion detection range and angle for different applications.

Sensor Metrics:

Ambient light (illuminance) - last measurement
Ambient light (illuminance) - average
Motion (PIR) - # of detections during the last sampling period
Motion (PIR) - # of detections during the last hour
Ambient noise (SPL) - RMS over 125ms window
Ambient noise (SPL) - peak (maximum)
Ambient noise (SPL) - base (minimum)

‍

Output Formats:

JSON:

{"noise":{"rms":33.5,"peak":33.5,"base":30.4},"pir":{"detections":0,"detPerHour":6},"light":{"last":58.13,"average":51.67}}

‍

CSV:

‍

#Columns: [noise_rms], [noise_peak], [noise_base], [pir_detections], [pir_lastHourD], [light_last], [light_average]
38.9, 42.4, 38.5, 1, 11, 60.96, 58.47

Specifications:

Data reporting rate: configurable between 1 second and 1 hour
Noise SPL range: ~ 20 - 130 dB(SPL)
Motion sensing range: up to 6 meters maximum
Illuminance output range: 0.01 to 64.000 lux
Operating range: -40 ‒ +85 °C, 10‒90 %r.H.
Power consumption: 75 mW / 5V - 15 mA

‍

Connector Type:

USB Type A - Male

Dimensions:

17.9 (W) x 52 (L) x 12.2 (H) [mm]

Weight:

6.7 g

Check the full documentation

uThings Docs
